| Projector type |
: |
LCD projector |
| Size |
: |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display system |
: |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
: |
Active matrix |
| Pixels |
: |
2,304,000 (1920 x 1200) pixels |
| Light source |
: |
Laser diodes |
| Light output |
: |
4,000 lm |
Time until light
output declines
to 50 |
: |
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution |
: |
WUXGA (1920 x 1200 pixels) |
| Contrast ratio |
: |
3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) |
: |
1.27–2.67 m (50–105 in), 16:10 aspect ratio |
Center-to-corner
zone ratio |
: |
85 % |
| Lens |
: |
Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,
throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image) |
| Digital Zoom Extender |
: |
Throw ratio: 0.43–0.54:15 (Corresponding value) |
| Keystone correction range |
: |
Vertical: ±15 ° (Auto, Manual),
Horizontal: ±15 ° (Manual) |
| Installation |
: |
Ceiling/floor, front/rear, free 360-degree installation |

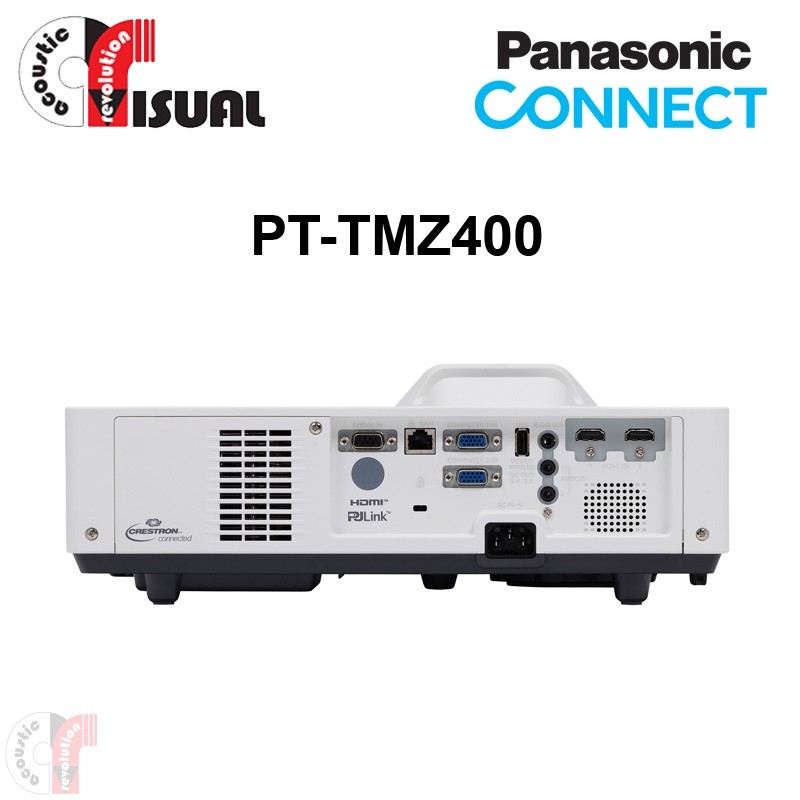

| HDMI 1/2 IN |
: |
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported |
| COMPUTER 1 IN |
: |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| COMPUTER 2 IN |
: |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| AUDIO 1/2 IN |
: |
M3 stereo mini-jack x 2 |
| AUDIO OUT |
: |
M3 stereo mini-jack x 1 |
| SERIAL IN |
: |
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| LAN |
: |
RJ-45 x 1 for network control, 10Base-T, 100Base-TX |
USB (VIEWER/
WIRELESS/DC OUT) |
: |
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,
power supply (DC 5 V, maximum 2 A8) |
| Protocol versions |
: |
IPv4, IPv6 |
| Power supply |
: |
AC 100 V–240 V, 50/60 Hz |
| Maximum power consumption |
: |
240 W |
On-mode power consumption
(Light Power) |
: |
[NORMAL]215 W (100–240 V), 205 W (200–240 V)
[ECO]165 W (100–240 V), 160 W (200–240 V)
[QUIET]160 W (100–240 V), 155 W (200–240 V) |
| Built-in speaker |
: |
10 W monaural |
| Cabinet materials |
: |
Molded plastic |
| Filter |
: |
Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise |
: |
35 dB (NORMAL/ECO), 24 dB (QUIET) |
Dimensions
(W x H x D) |
: |
349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position) |
Weight with
supplied lens |
: |
4.9 kg (10.8 lbs) |
| Operating environment |
: |
Operating temperature: 0–45 °C (32–113 °F)13, Operating humidity: 20–80 % (no condensation) |
| Applicable software |
: |
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,
Presenter Light Software for Windows®, Wireless Projector App for iOS/Android™ |
Control function
via LAN |
: |
PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery |
