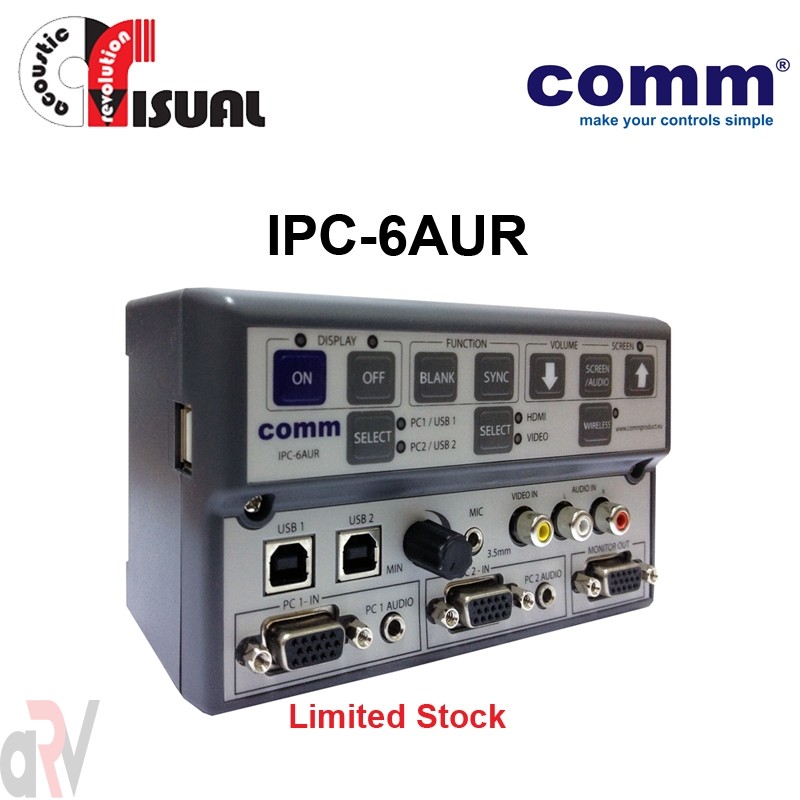

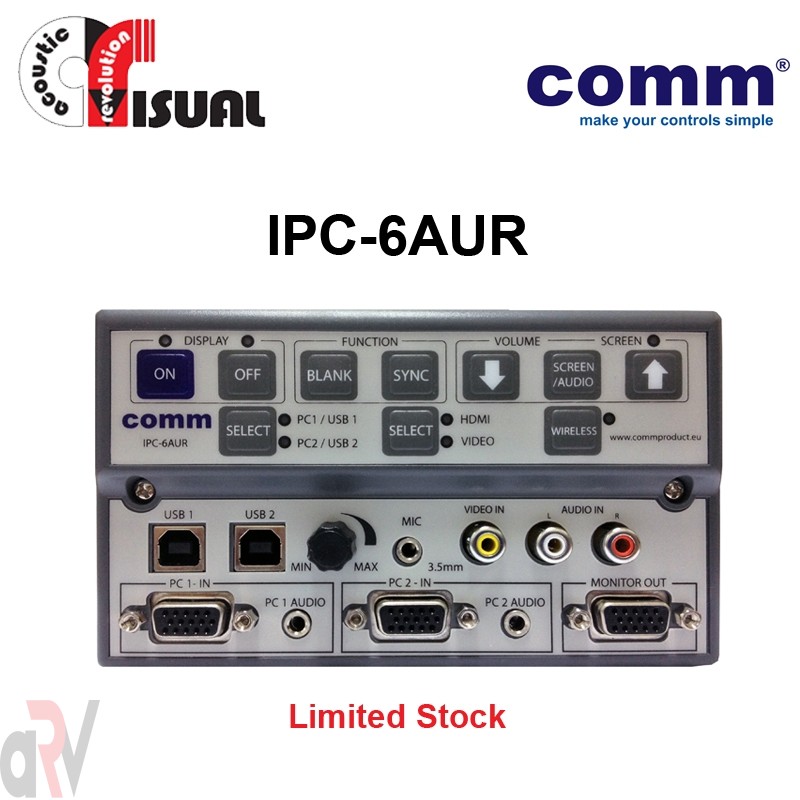

Comm WizarSwitch Controller - IPC-6AUR

IPC-6AUR

Designed to control your Audiovisual Equipment in the most simplified ways via RS-232 commands

Availability: In stock

S$290.00

Comm Integrated WizarSwitch (IPC Series) - Designed to control your Audiovisual Equipment in the most simplified ways via RS-232 commands; reasonably priced and works with most projectors and plasma displays.

Widely used in Classrooms, Auditoriums, Lecture Theatres, Conference Rooms etc.

Recommended for Classrooms with Interactive Displays

  • Display Controller for your Projector, Plasma (Power ON/OFF, input source selections, volume control) via RS232 Commands
  • One Touch Selection with LED Back-Lit Indications
  • INPUTS : 2 VGA with USB, 1 Composite Video
  • OUTPUTS: 2 VGA, 2 USB, 1 Video (Composite)
  • Built-In Signal Amplifier of 250MHz
  • Digital Volume Control for sound level adjustments
  • Volume Control Knob for MIC Inputs sound adjustments
  • STANDBY mode - MIC Volume Control usable
  • PC1 with Audio : PC Monitor is usable even when projector is OFF
  • 3 USB Connections with Built-in USB Repeater
Power Supply : 12V DC Power Adapter

Input : PC1 / PC2 Signal - VGA (D-Sub 15-Pin Female)
  : PC1 / PC2 Audio - 3.5mm Mini Jack
  : Video Signal - Composite Video (RCA)
  : Audio Signal - Stereo / Composite Audio (RCA)
  : Microphone IN - 3.5mm Mini Jack
    USB 1 / USB 2 IN - USB Female Type B Connector
    USB IN - USB Female Type A Connector

Output : PC Signal - VGA Bandwidth of 250MHz
  : PC Signal - Monitor OUT, VGA Bandwidth of 250MHz
  : Video Signal
    Audio Signal
    Microphone OUT
    USB OUT

Communication Control : Serial Control Port - RS232
    Baud Rate - 9600, 19200, 38400, 115200

Selector Switch : Display ON / OFF
  : Blank (Toggle Button)
  : Auto Sync (Toggle Button)
  : Screen / Audio Volume (Toggle Button UP / DOWN)
  : VGA with USB IN Selector (Switch between PC1 or PC2)
  : DISPLAY Selector (Switch between HDMI or VIDEO)
  : WIRELESS IN Selector (depending on the device whether there’s Wireless presentation functions)
  : VOLUME Control Knob (For MIC Inputs)

All products information and specifications are subject to changes without prior notice.

Comm IPC-6AUR Downloads

   Brochure
