Comm Video / VGA Selectors - Flexible and cost-effective solutions for Video Public Broadcasting,Remote Monitoring, Multimedia Conference Rooms, schools & Training facilities etc, where high quality video VGA signals necessary.

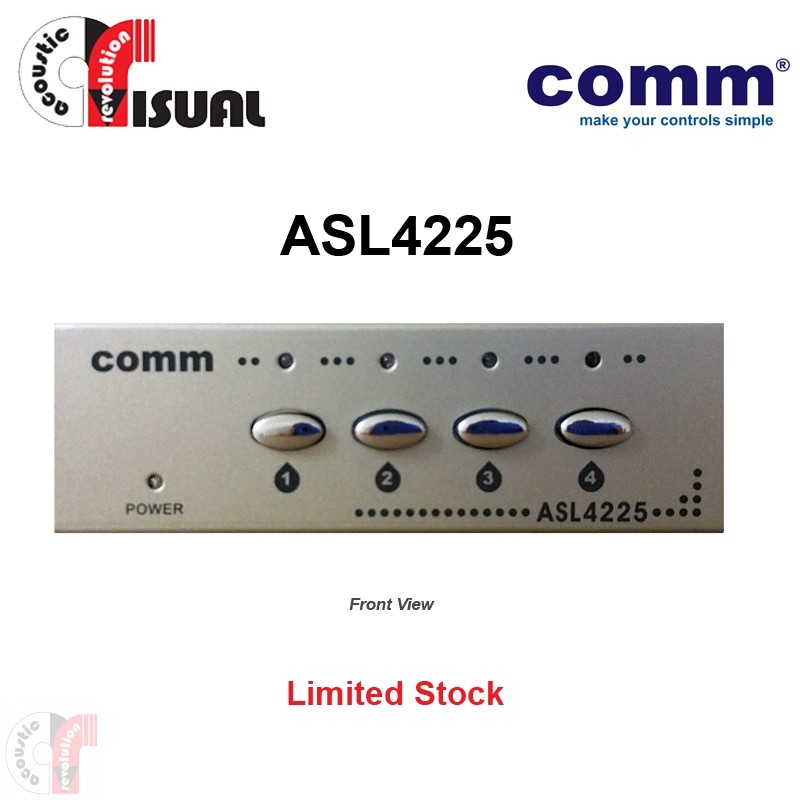

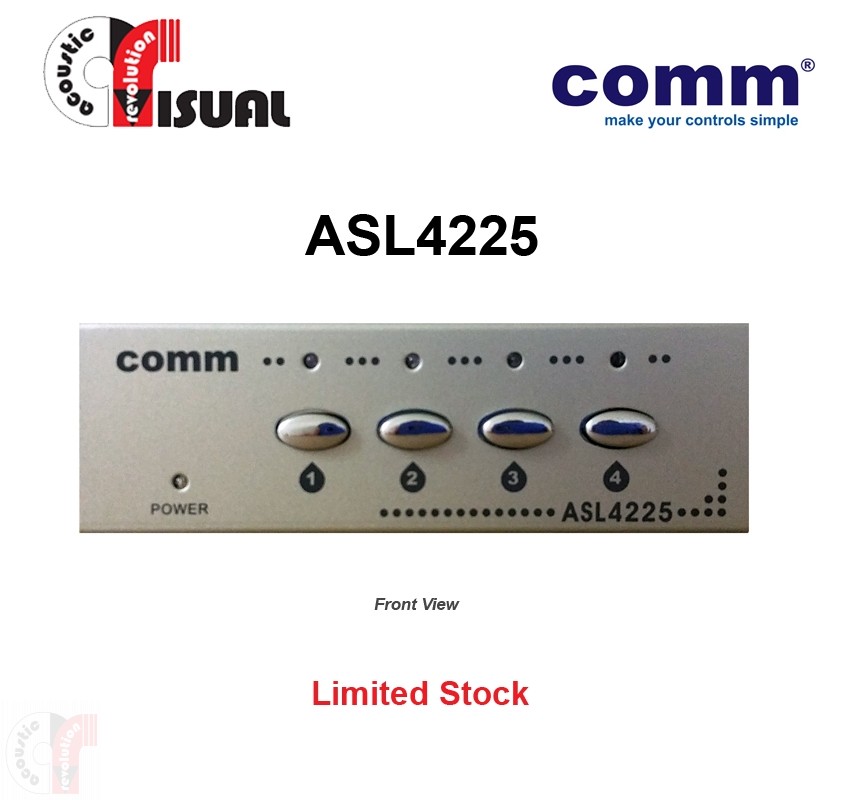

- Also known as Video Switcher, allows you to select and switch between up to four separate VGA Video inputs, for a single or dual VGA Video outputs to your monitor and/or projector.
- Easy to use and set-up, simply connect your systems with your VGA Cables to the splitter or the selector, and connect your monitor and/or projector to the output port.

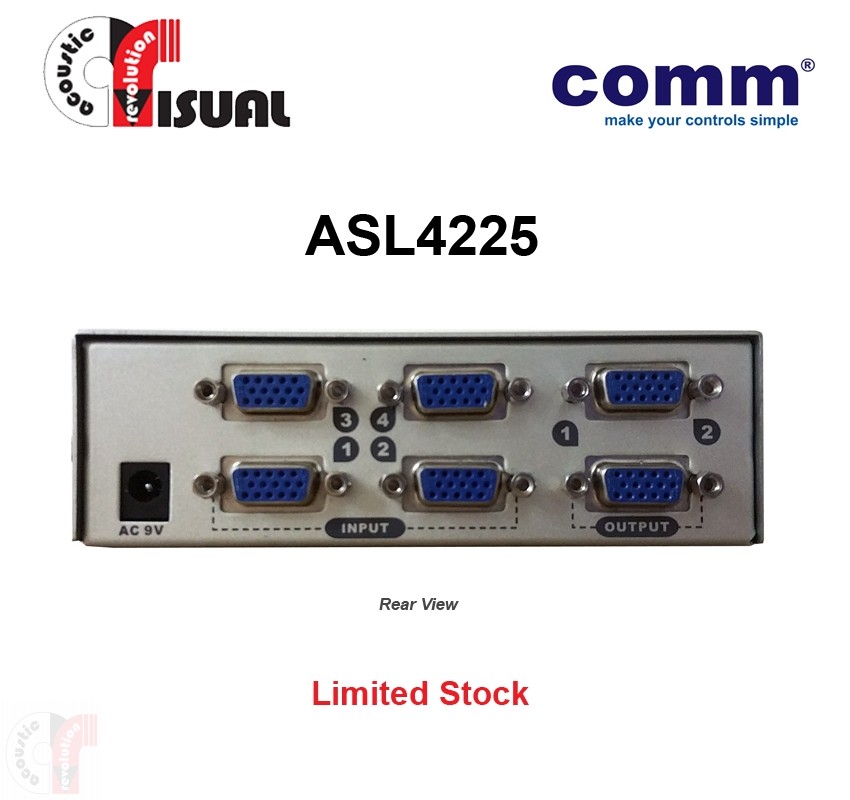

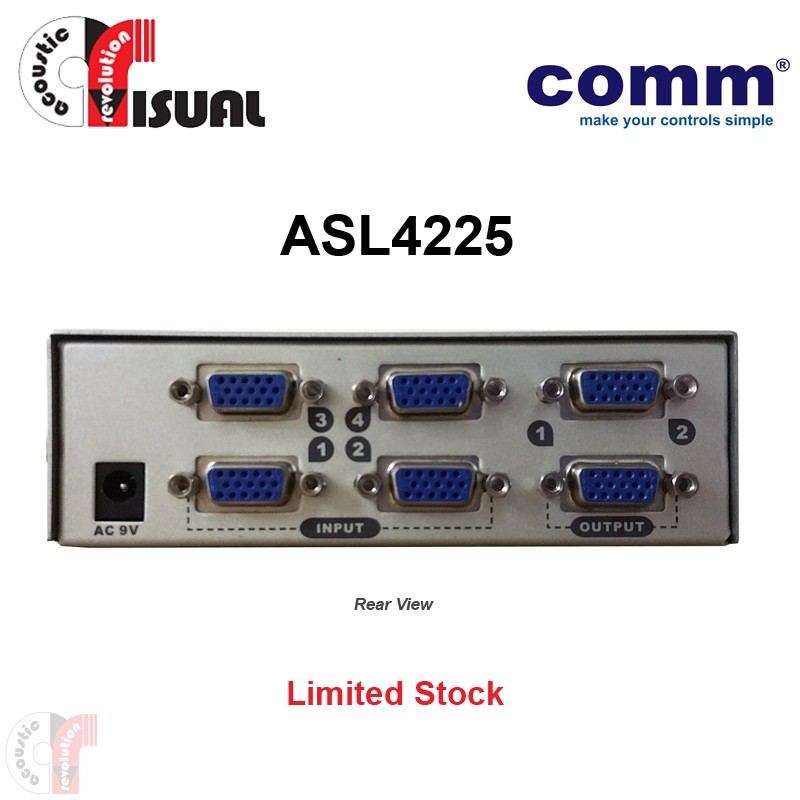

| IN / OUT |
: |
4 in 2 out |
| |
|
|
| Video Input Connectors |
: |
4 x HDB-15 Female |
| |
|
|
| Video Output Connectors |
: |
2 x HDB-15 Female |
| |
|
|
| Max. Resolution |
: |
1600 x 1200 |
| |
|
|
| Bandwidth |
: |
250Mhz |
| |
|
|
| Signal Type |
: |
VGA, SVGA, XGA, SXGA |
| |
|
|
| Operating Temperature |
: |
0-40 degrees (Celsius) |
| |
|
|
| Storage Temperature |
: |
-5--70 degrees (Celsius) |
| |
|
|
| Housing |
: |
Metal |
| |
|
|
| DC Power Adapter |
: |
9V |
| |
|
|
| Dimensions (WxDxH) |
: |
130 x 98 x 45 mm |
All products information and specifications are subject to changes without prior notice.
