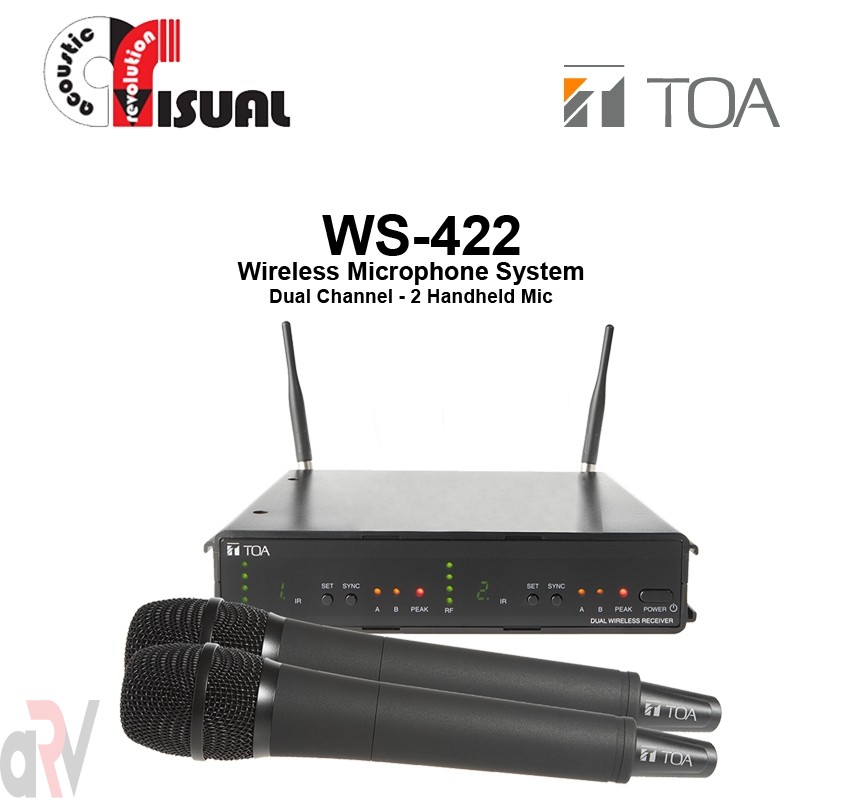

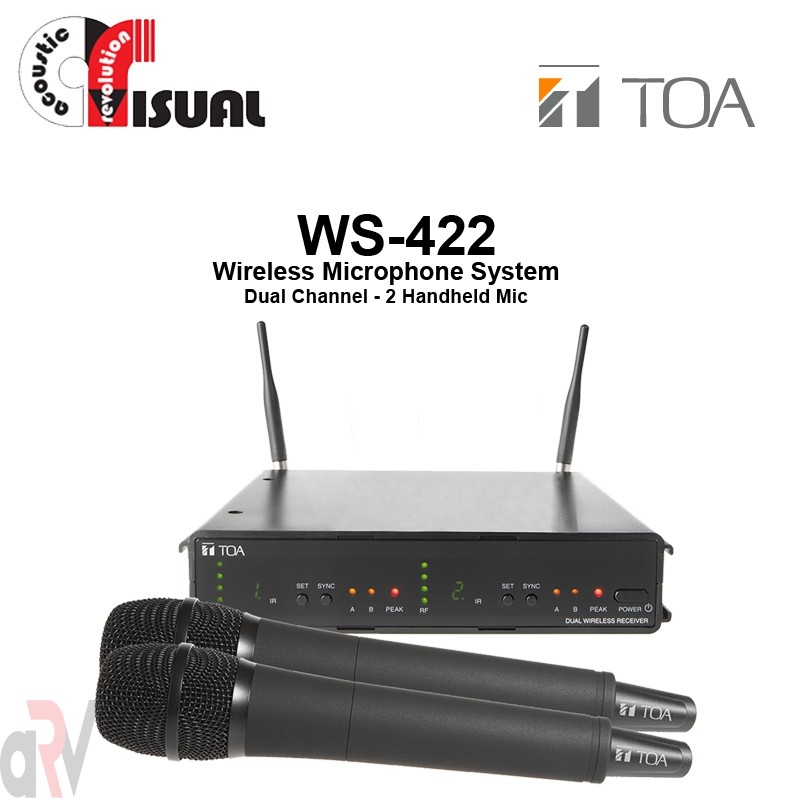

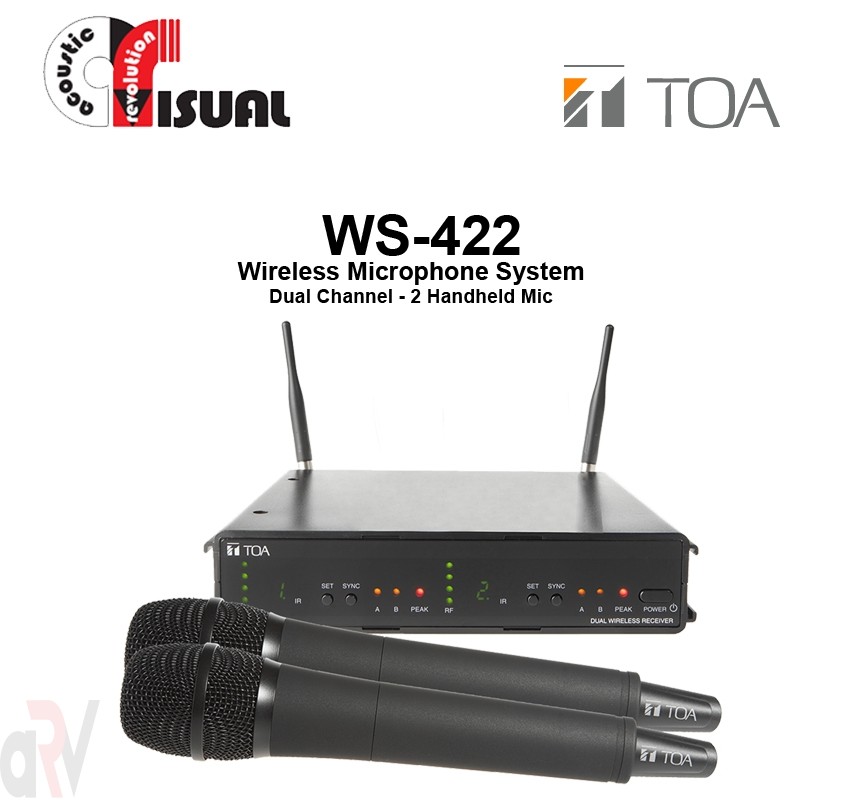

TOA Dual Channel Microphone System WS-422

WS-422

TOA Wireless Microphone System

Dual Channel - 2 Handheld Microphones

Please contact us to check stock availability before placing order.

Availability: Out of stock

S$974.00

TOA Wireless Microphone System

Dual Channel - 2 Handheld Microphones

  • Handheld Microphone and beltpack provides up to 10 hours continuous usage with the use of only 1 x AA battery ensuring long term cost efficiency
  • Long operating range of approx. 100 m (line of sight)
  • IR Sync
  • Dual Channel: Selectable Up to 16 simultaneous channels (depending on region)
Specifications   WS-422
A) Receiver Dual Channel
Diversity Reception : AC mains (supplied AC-DC adapter must be used)
Frequency Range : 633 - 671 MHz, 803 - 806 MHz, UHF
Sensitivity : 10uV at 45 dBA S/N
Squelch (SQ) : Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response : 50 Hz - 15 kHz
Audio Output Level
(Maximum)
: Balanced (XLR socket) : 16 dBu
Unbalanced (1/4" jack socket) : 10 dBu
Power Supply : 11 - 18 VDC 500 mA
Dimensions : 210 (W) x 44 (H) x 202 (D) mm (excluding antenna)
Weight : 720 g
B) Wireless Transmitter Handheld Microphone
Microphone unit : Dynamic with cardioid pattern
RF Carrier Power : 10 mW
Audio Frequency Response : 80 Hz - 15 kHz
Audio input Level : 140 dBSPL (maximum)
Battery Life : approx. 10 hours
Power Supply : 1 AA size alkaline battery, 1.5 V
Finish : Resin, coating
Dimensions : 250 x ø55 mm
Weight : 245 g (with battery)
All products information and specifications are subject to changes without prior notice.
