| Projector type |
: |
LCD projectors |
| LCD panel | Panel size (mm) |
: |
19.3 mm diagonal (16:10 aspect ratio) |
| LCD panel | Panel size (inch) |
: |
0.76 inch diagonal (16:10 aspect ratio) |
| LCD Panel | Display Method |
: |
Transparent LCD panel (x 3, R/G/B) |
| LCD Panel | Drive Method |
: |
Active matrix |
| LCD Panel | Pixels |
: |
2,304,000 ( Pixels 1920 x 1200) pixels x 3 |
| Light Source |
: |
Laser diodes |
| Light Output |
: |
8,000 lm |
| Resolution |
: |
WUXGA (1920 x 1200 pixels) |
| Contrast Ratio |
: |
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input) |
| Screen size (diagonal) (mm) |
: |
1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio |
| Screen size (diagonal) (inch) |
: |
1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio |
| Center-to-corner zone ratio |
: |
85 % |
| Lens |
: |
Powered zoom (throw ratio 1.61–2.76:1), powered focus F = 1.7–2.3, f = 26.8–45.5 mm (for supplied lens; optional lenses also available) |
| Lens shift | Vertical(From the origin point of the lens mounter) |
: |
±67 % (powered) (for supplied lens; optional lenses also available) |
| Lens shift | Horizontal(From the origin point of the lens mounter) |
: |
±35 % (powered) (for supplied lens; optional lenses also available) |
| Keystone Correction Range |
: |
Vertical: ±25 °, Horizontal: ±30 ° (for supplied lens; optional lenses also available) |
| Installation |
: |
Ceiling/floor, front/rear, free 360-degree installation |

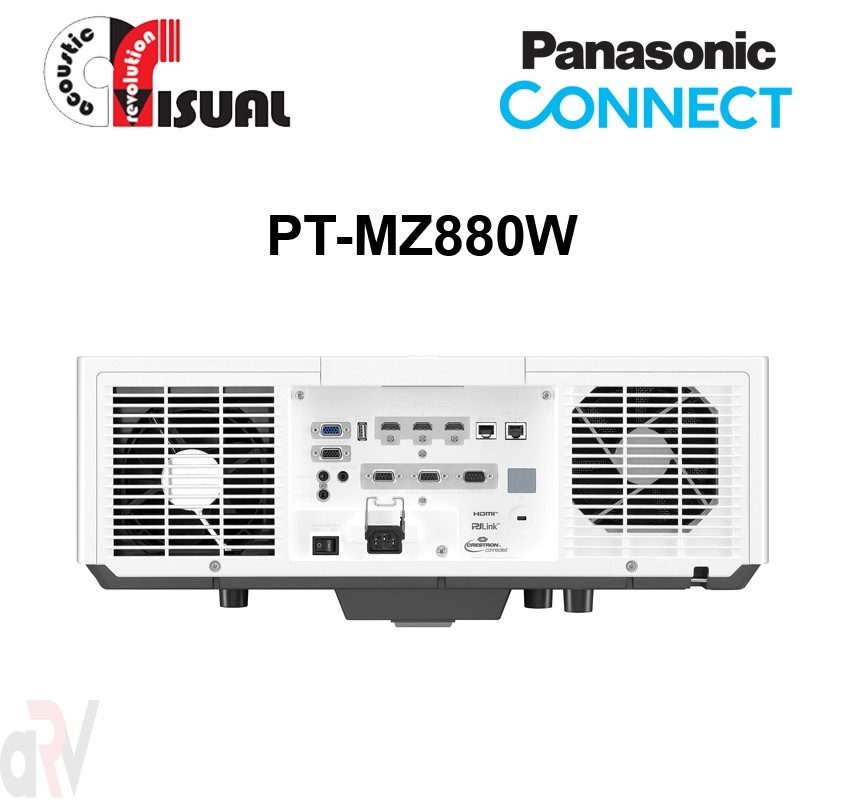

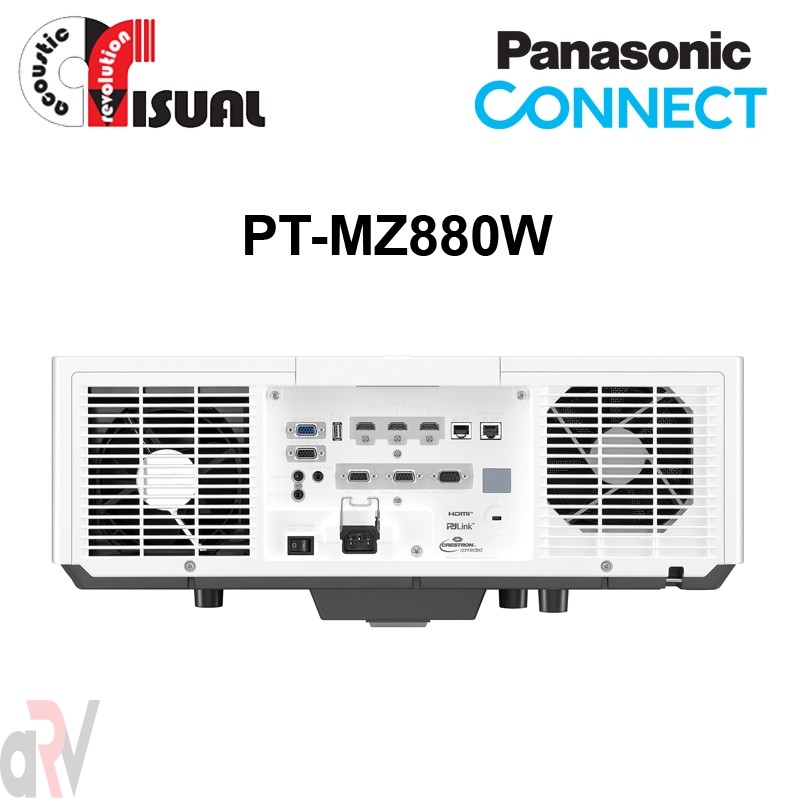

| Terminals | HDMI In |
: |
HDMI 19-pin x 3 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported |
| Terminals | Computer In |
: |
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Monitor Out |
: |
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Serial / Multi Sync In |
: |
D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant) |
| Terminals | Multi Sync Out |
: |
D-sub 9-pin (male) x 1 for link control |
| Terminals | REMOTE 1 IN |
: |
M3 stereo mini-jack x 1 for wired remote control |
| Terminals | Remote 2 In |
: |
D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | Audio In |
: |
M3 stereo mini-jack x 1 |
| Terminals | Audio Out |
: |
M3 stereo mini-jack x 1 |
| Terminals | DIGITAL LINK |
: |
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color,4K/60p signal input) |
| Terminals | LAN |
: |
RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
| Terminals | DC Out |
: |
USB Connector (Type A) x 1 (Output 5 V/2 A) |
| Power Supply |
: |
AC 100–240 V, 50/60 Hz |
| Power Consumption | Maximum power consumption |
: |
490 W (5.4–2.6 A) (510 VA) (Power consumption is 465 W at 200–240 V) |
| Power Consumption | On-mode power consumption (Light power) |
: |
[NORMAL]: 435 W (100–120 V), 415 W (200–240 V) [ECO]: 315 W (100–120 V), 300 W (200–240 V) [QUIET]: 310 W (100–120 V), 295 W (200–240 V) |
| Cabinet Materials |
: |
Molded plastic |
| Filter |
: |
Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise |
: |
34 dB (NORMAL/ECO), 27 dB (QUIET) |
| Dimensions (W × H × D) |
: |
561 x 224 x 439 mm (22 3/32˝ x 8 13/16˝ x 17 9/32˝ ) (with supplied lens) |
| Weight |
: |
Approx. 18.6 kg (41.0 lbs) (with supplied lens) |
| Operating Environment |
: |
Operating temperature: 0–45 °C (32–113 °F)*10 operating humidity: 20–80 % (no condensation) |
| Applicable software/application |
: |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android™, Geometry Manager Pro |
